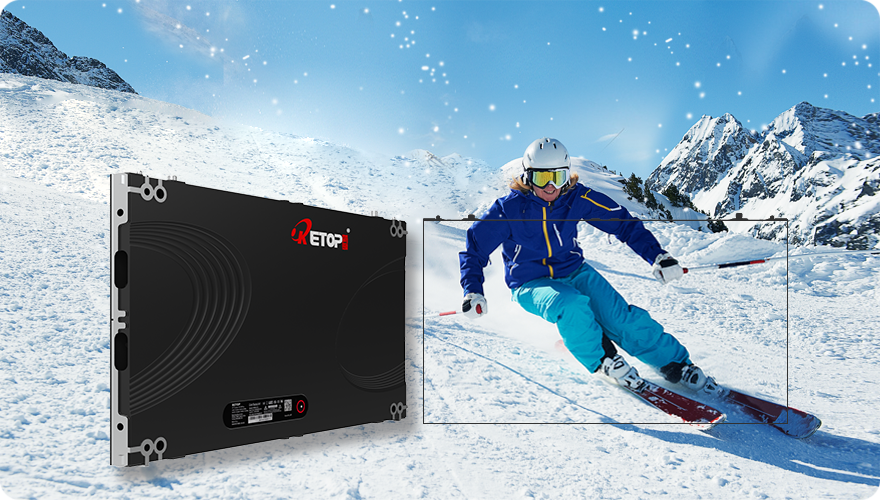

HiPad II - COB
智能商显超高清LED显示屏
| 产品型号 | HIPADⅡ-COB 0.7 | HIPADⅡ-COB 0.9 | HIPADⅡ-COB 1.2 | HIPADⅡ-COB 1.5 |
| 点间距 (mm) | 0.78125 | 0.9375 | 1.25 | 1.5625 |
| 模组尺寸 (W × H) (mm) | 150 × 168.75 | 150 × 168.75 | 150 × 168.75 | 150 × 168.75 |

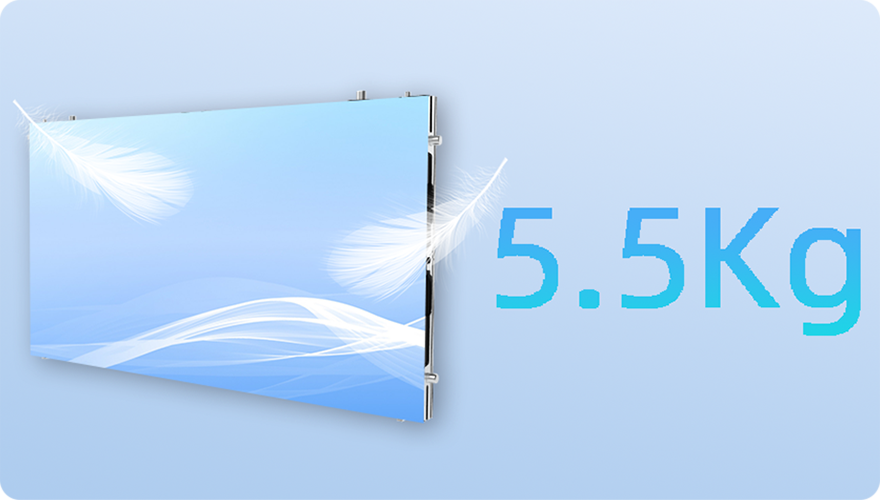

| 箱体尺寸 (W × H × D) (mm) | 600× 337.5 × 35 | 600× 337.5 × 35 | 600× 337.5 × 35 | 600× 337.5 × 35 |
| 亮度 (cd/m²) | ≤600 | ≤600 | ≤600 | ≤600 |
| 刷新率 (Hz) | 3,840 - 7,680 Hz | 3,840 - 7,680 Hz | 3,840 - 7,680 Hz | 3,840 - 7,680 Hz |
| IP防护等级 | Front IP65 / Rear IP 30 | Front IP65 / Rear IP 30 | Front IP65 / Rear IP 30 | Front IP65 / Rear IP 30 |
