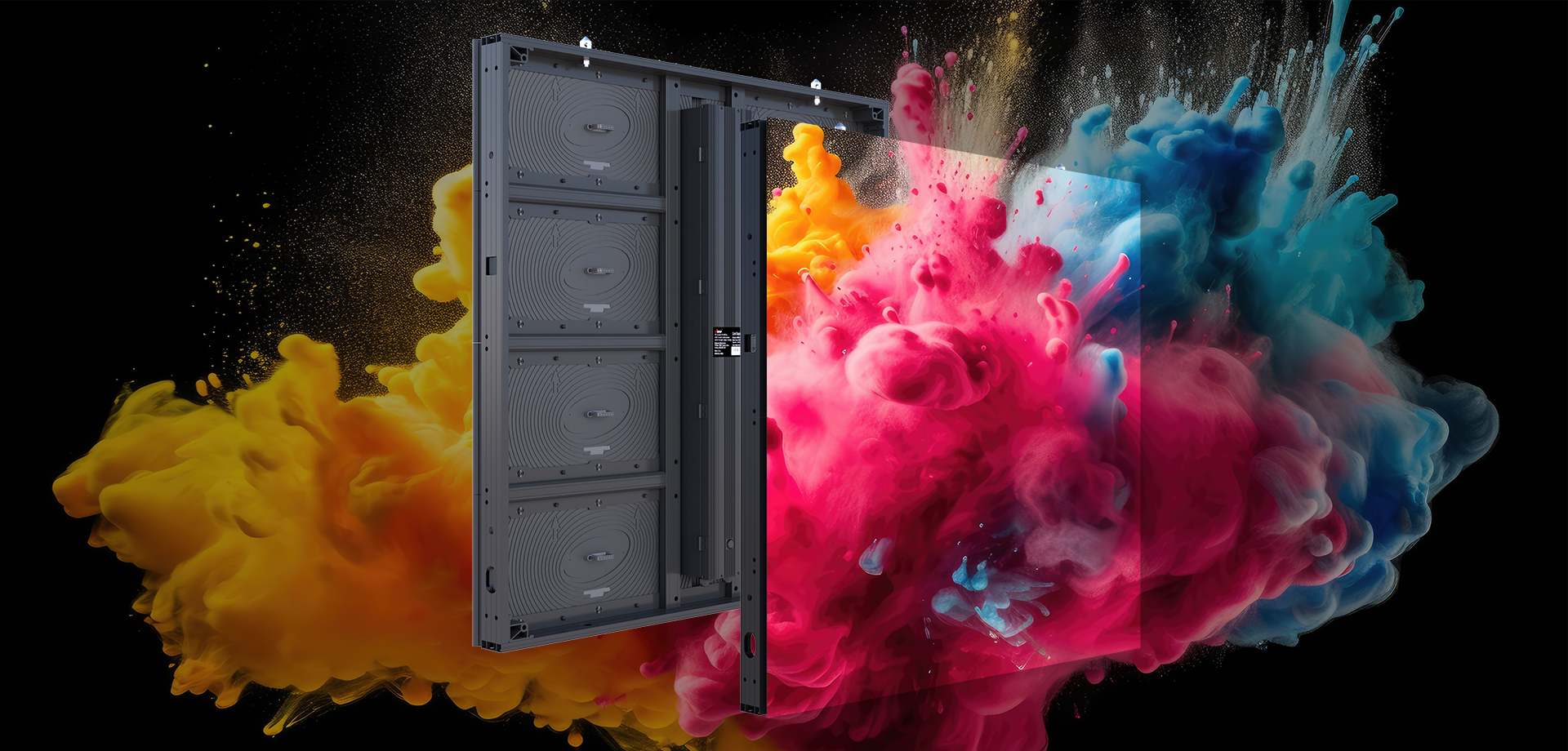

AERO
户外固装LED显示屏
| 产品型号 | AERO 2.9 | AERO 3.9 | AERO 4.8 | AERO 6.25 | AERO 8.33 | AERO 10.42 | AERO 10.42 | AERO 16.67 | AERO 25 |
| 点间距 (mm) | 2.976 | 3.91 | 4.81 | 6.25 | 8.33 | 10.42 | DIP-10.42 | DIP-16.67 | DIP-25 |
| 模组尺寸 (W × H) (mm) | 500 × 250 | 500 × 250 | 500 × 250 | 500 × 250 | 500 × 250 | 500 × 250 | 500 × 250 | 500 × 250 | 500 × 250 |

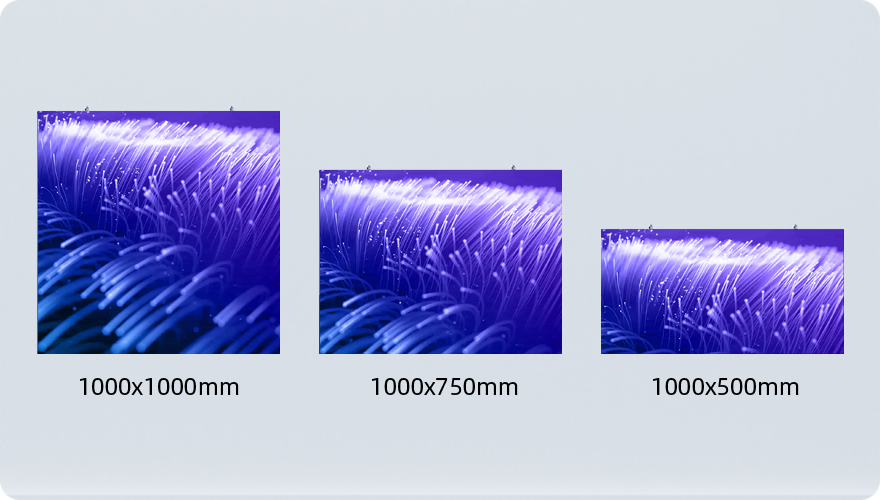

| 箱体尺寸 (W × H × D) (mm) | 1000 x 1000 x 109 | 1000 x 1000 x 109 | 1000 x 1000 x 109 | 1000 x 1000 x 109 | 1000 x 1000 x 109 | 1000 x 1000 x 109 | 1000 x 1000 x 115 | 1000 x 1000 x 115 | 1000 x 1000 x 115 |
| 亮度 (cd/m²) | >5,000 | >5,000 | >5,000 | >5,000 | >5,000 | >5,000 | 10,000 | 10,000 | 10,000 |
| 刷新率 (Hz) | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 |

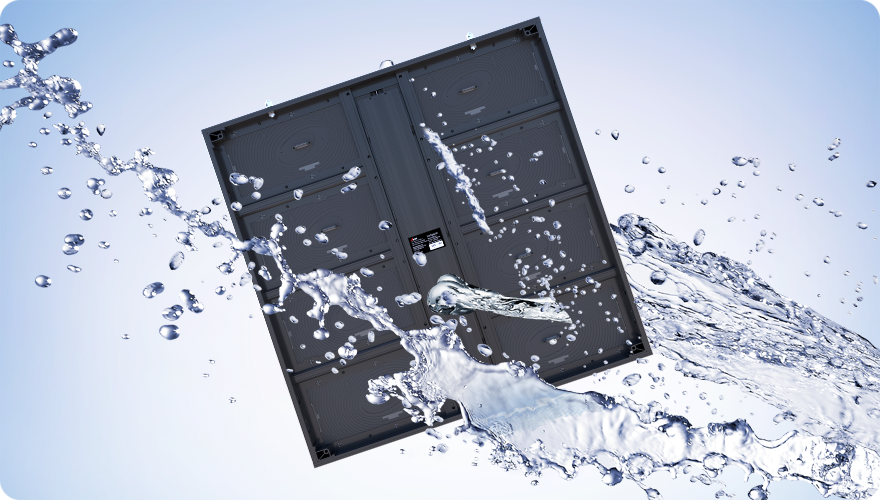

| IP防护等级 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
