OS
户外固装LED广告屏
| 产品型号 | 0S 2.5 | OS 3 | OS 4 | OS 5 | OS 6.6 | OS 8 | OS 10 |
| 点间距 (mm) | 2.5 | 3.076 | 4 | 5 | 6.67 | 8 | 10 |
| 模组尺寸 (W × H) (mm) | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| 箱体尺寸 (W × H × D) (mm) | 640 x 640 x 100 | 640 x 640 x 100 | 960 x 960 x 100 | 960 x 960 x 100 | 960 x 960 x 100 | 960 x 960 x 100 | 960 x 960 x 100 |
| 亮度 (cd/m²) | >5,000 | >5,000 | >5,500 | >5,500 | >5,500 | >5,500 | >5,500 |
| 刷新率 (Hz) | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 |

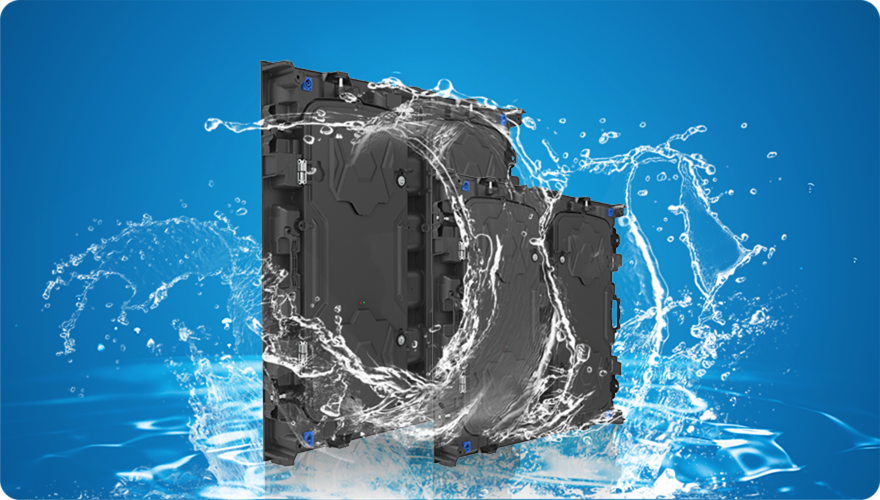

| IP防护等级 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
