TES II PRO-S

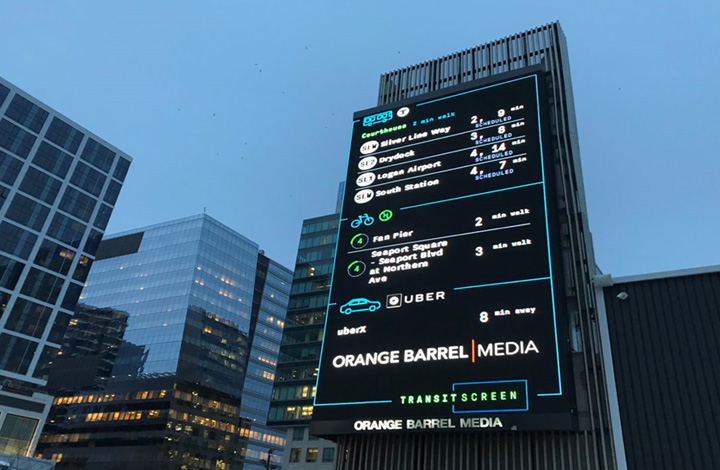

户外LED高清广告显示屏
| 产品型号 | TESII PRO-S 5 | TESII PRO-S 6.67 | TESII PRO-S 8 | TESII PRO-S 10 | TESII PRO-S 10.66 | TESII PRO-S 16 |
| 点间距 (mm) | 5 | 6.67 | 8 | 10 | DIP-10.66 | DIP-16 |
| 模组尺寸 (W × H) (mm) | 480 × 320 | 480 × 320 | 480 × 320 | 480 × 320 | 480 × 320 | 480 × 320 |

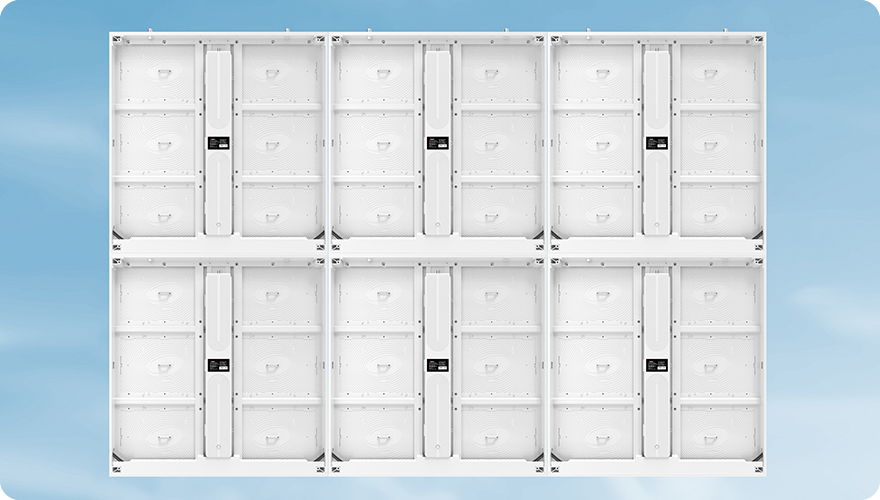

| 箱体尺寸 (W × H × D) (mm) | 960 x 640/960/1280 x 96 1440 x 640/960/1280 x 96 | 960 x 640/960/1280 x 96 1440 x 640/960/1280 x 96 | 960 x 640/960/1280 x 96 1440 x 640/960/1280 x 96 | 960 x 640/960/1280 x 96 1440 x 640/960/1280 x 96 | 960 x 640/960/1280 x 100 1440 x 640/960/1280 x 100 | 960 x 640/960/1280 x 100 1440 x 640/960/1280 x 100 |
| 亮度 (cd/m²) | >6,000 | >6,000 | >6,000 | >6,000 | 10,000 | 10,000 |
| 刷新率 (Hz) | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 | 3,840 - 7,680 |

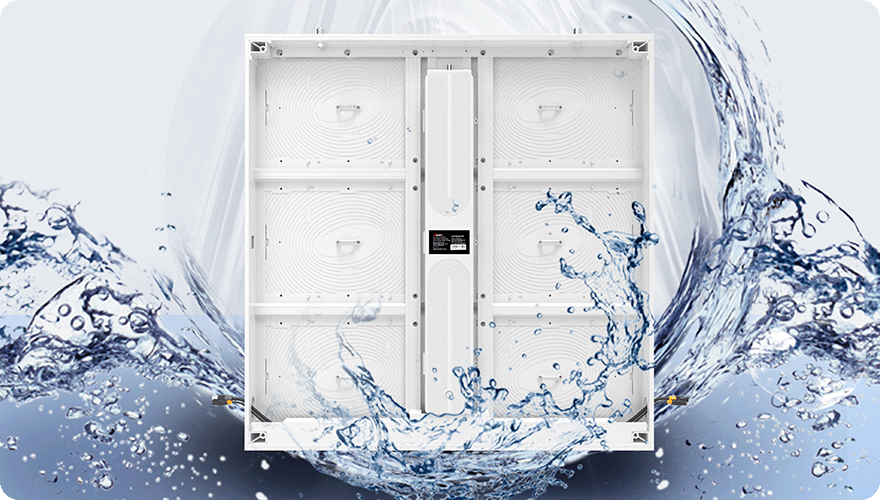

| IP防护等级 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
